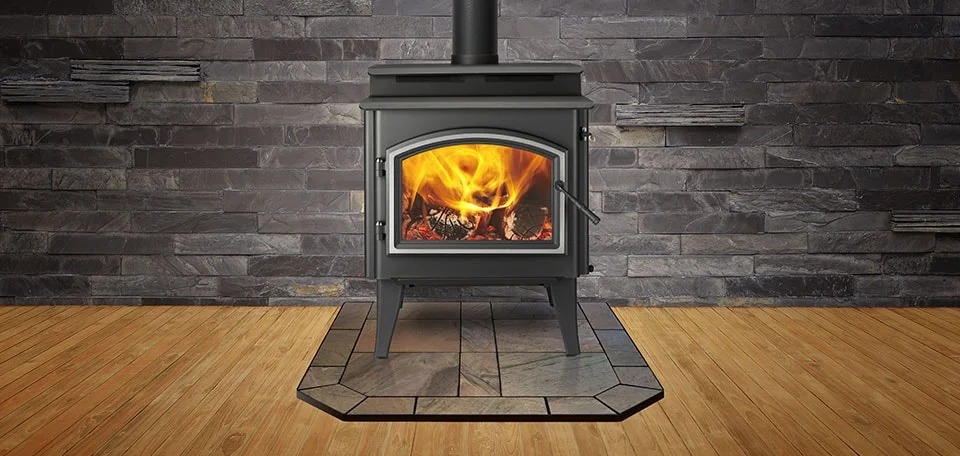

Quadrafire 5700 Step Top

The Quadrafire 5700 Step Top is a wood-burning powerhouse. It’s big on heating performance, and even bigger on efficiency. Automatic Combustion Control (ACC) burn technology offers precision heating control, and easily blends with the Quadra-Fire Four-Point Burn System. Embrace the 5700’s powerful, money-saving, efficient wood stove performance.

  • Heat 1,400-3,700 sq ft with 72,100 BTUs*, based on climate and home efficiency
  • Low emission levels of 1.8 grams per hour, certified by the EPA
  • 3.0 cu ft firebox capacity / recommended 22″ log length
  • Up to 15 hours of burn time from each load of fuel†
  • Easy start-up
  • Also available in these sizes: 4300 Step Top

*The amount of heat produced by a heating appliance is measured in British Thermal Units (BTUs). One BTU represents the amount of energy required to raise the temperature of 1 lb. of water by 1 degree F. Generally, more BTUs correlate to greater heating potential. However, the amount of BTUs needed to heat a specific area varies, based on climate and home efficiency.

Quadrafire 5700 Step Top Wood Stove – ACC

Appliance Width:27″
Appliance Height:37-11/16″
Appliance Depth1:32-3/8″
Peak BTU/hr Output2:72,100
Heating Capacity3:1,400 – 3,700 sq ft
Maximum Burn Time4:15 hrs
Firebox Capacity:3.0 cu ft
Recommended Log Length:22″
Viewing Area:187 sq in
Efficiency5:LHV 80%, HHV 74%
Emissions:1.8 grams/hour
